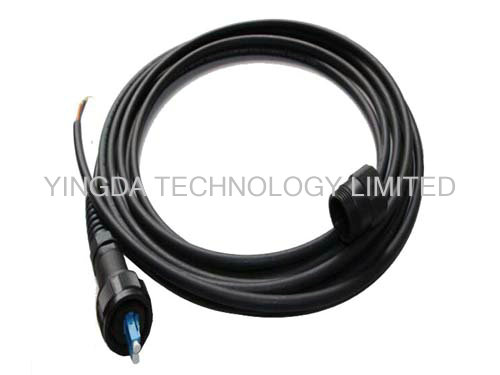

PDLC / DLC GYFJH 4 Core Fiber Optic Patch Cord LC Outdoor Use
DLC Optical Cable Assembly Waterproof Outdoor Protected Cable is standard size for Duplex LC,Connectors, and the outer housing with metal protective device. The connecting is safe and reliable. Also have the functions of waterproof, dustproof. This patch cords widely used in FTTA, Base station, and the outdoor waterproof condition.
1. FIber patch panel GYFJH cable
1.1 optical fiber cable Structure
1.2 FIber patch cable waterproof Features
The PDLC Waterproof patch cord used for outdoor RRU transmitting optical signal and remote fiber
feeder etc;
1. Standard Duplex LC connector, well connected with standard LC adaptor
2. Available Single mode and Multimode
3. IP67 protection, salt-mist proof, humidity proof, dust proof
4. Low insertion/return loss, steady optical transmitting.
5. Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
1.3 fiber optic patch panel Applications
1. Widely used in FTTA & FTTH
2. Used for 3G 4G base station
3. BBU, RRU, RRH, LTE
1.4 fiber Cable Parameters
| Fiber count | Cable dimension | Cable weight | Tensile/N | Crush N/100mm | Min. Bend radius/mm | Range of temperature/°C |
| Mm | Kg/km | Long term | Short term | Long term | Short term | Dynamic | Static |
| 2 | 7 | 42.3 | 200 | 400 | 1100 | 2200 | 20D | 10D | -100 |
| Note: |
| 1. All the values in the table,which are reference only, are subject to change without notice. |
| 2. The cable dimension and weight are subject to the simplex cable of 2.0mm outer diameter; |
| 3. D is outer diameter of the round cable. |
1.5 fiber optic Connector Specification
| Item | Parameter |
| Connector | DLC/UPC, PDLC |
| Insertion loss | ≤0.3dB |
| Return loss | ≥50dB |
| Fiber mode | Single mode,9/125um |
| Operating wavelength | 1310/1550nm |
| Test wavelength | 1310/1550nm |
| Repeat ability | ≤0.1dB |
| Interchange ability | ≤0.2dB |
| Durability | ≤0.2dB |
| Fiber length | 1m,2m.. Any length optional |
| Length and tolerance | 10cm |
| Operating temperature | -40~+85°C |
| Storage temperature | -40~+85°C |
